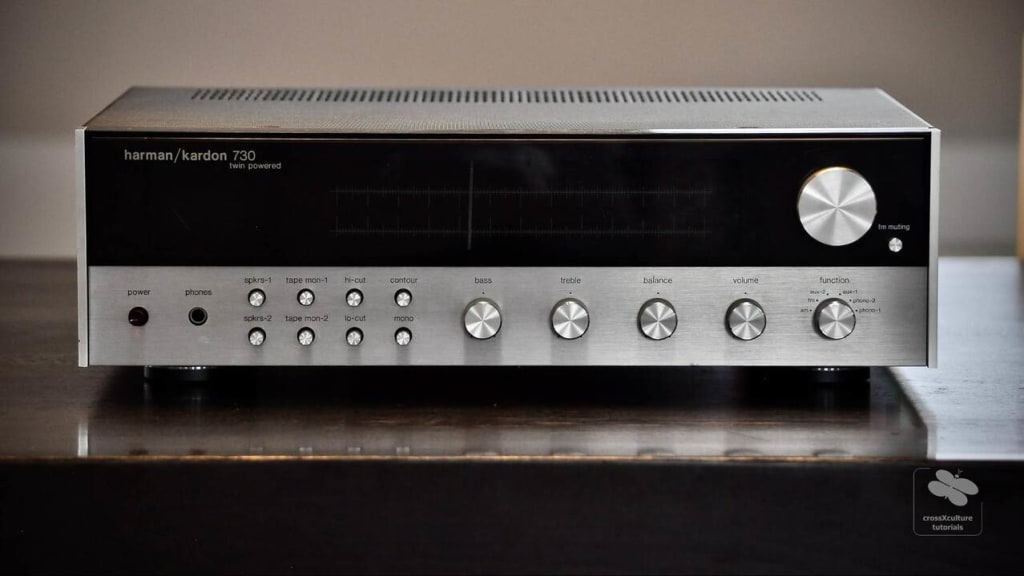

HK 730 Twin Powered

The story has it that Sidney Harman and Bernard Kardon were co-workers in the higher levels of David Bogen & Co., a telegraph and communications specialist, before they both resigned to form Harman / Kardon in Stamford, Connecticut, in 1953. From the very start, the company focused on designing integrated receivers that would merit the definition ‘high fidelity’. The first Harman / Kardon high fidelity receiver, the Festival D1000, was among the world’s first AM/FM compact receivers and already featured what would later become HK trademarks, such as a copper plated chassis. Although Bernard Kardon soon after retired, in 1953, he sold his interests in the company to Sidney Harman, who consequently named his company Harman International. Perhaps out of respect for his retired colleague, but perhaps also because he did not want to again change a brand name that customers had just gotten used to, the company has continued to carry the double name Harman / Kardon on all their receivers, tuners, and amplifiers to this day.

The company’s strategy of building the highest quality product at any price level sometimes meant the omission of nice-to-have features for the sake of clarity and for the sake of being able to afford higher grade components, which may have alienated some customers in the shops. On the other hand, it has been this focus on the essential that has helped the company build a strong base of followers to keep it alive over the years where many others have failed. The iconic HK 330 receiver was introduced to the public in 1968. It is an excellent example of the Harman design philosophy and was very well received. The HK 730 shown here was the most powerful model of that product range and was built from 1975 - 1978. Its solid 50 watts per channel into 8 ohms may seem relatively unimpressive by today’s standards, however, one needs to consider that this unit was built before the receiver wars, in other words, before high watts figures were considered to be an asset. Instead, the unit was engineered for sonic performance, and the components were chosen to perform musically and effortlessly at common listening volumes. On the basis of the components used, higher output ratings would easily have been possible, if this had been the intention.

Harman / Kardon believed that limiting frequency response outside of human hearing would negatively influence the harmonics found in frequencies within the scope of human hearing. Hence the HK 730 attempts a linear performance from 4 Hz to 40.000 Hz. As is the case with all of Harman’s twin powered receivers, the unit features a double-mono amplification unit, each side with its independent power supply, as well as a third power supply for the preamplifier. Both the preamplifier and the power amplifier can be used separately, by removing the bridge at the back of the unit. All frontal elements are made of solid metal and have been placed on high quality switches and attenuators. Given Harman’s attention to detail, it is a little surprising that the treble and bass controls cannot be cut from the signal path. A small blunder that is easily forgiven once you hear the unit sing. The tuner and phono stage are truly excellent. The copper plated body helps to keep away interference, and the components are well chosen and well placed.

The unit shown here needed some re-soldering. Especially the cinch/RCA connectors on the back can come loose with time. The original US power cord has been replaced with a high quality Lapp cable, and the clamps for the two sets of speakers have been replaced with banana jacks for convenience and to be able to attach larger diameters of speaker wire. The sonic performance is life-like and natural with plenty of control over the speakers. Its quality, features, and performance make the HK 730 one of the best classic receivers ever built.

Specifications

• Type: Post World War 2 AM/FM receiver
• Tuning range: FM, MW
• Power output: 50 watts per channel into 8Ω (stereo)
• Frequency response: 4 Hz to 130 kHz
• Total harmonic distortion: 0.1%
• Damping factor: 30
• 2x Phono inputs: 2.5 mV, 47 kOhms
• Auxilliary and tape inputs: 150 mV, 30 kOhms
• Input sensitivity: 2.5mV (MM), 150mV (line)
• Signal to noise ratio: 72dB (MM), 77dB (line)
• Dimensions: (W) 432 mm x (D) 368 mm x (H) 140 mm
• Weight: 13.7kg
• Country of manufacture: U.S.A.
• Year(s): 1975 - 1978
