Hafler DH-120

Hafler DH-120

6/5/2020

Author: Karsten Hein

Category: Gear & Review

Tag: Power Amplifiers

Go to comments

The David Halfer Co. was founded in Pennsauken, New Jersey, in 1972, but at the time of its founding, David Hafler had already made history as one of the world's most iconic audio engineers. Born in 1919, Hafler was a graduate in mathematics from the University of Pennsylvania who served for some time as a communications specialist in the Coast Guard during World War II. In 1950, he and his friend Herbert Keroes founded Acrosound, a specialist manufacturer of audio grade linear transformers for tube amplifiers. From building transformers it was just a small step to building the tube amplifiers around them, and in 1954, David Hafler left Acrosound and partnered with an audio engineer named Ed Laurent to found the Dyna Company, a name that was later re-branded as Dynaco.

Throughout his career, David Hafler focused on engineering audiophile products at affordable prices. Acrosound had built transformers primarily for home electronics hobbyists, and Dynaco was to take the idea of DIY audio to a whole new level. Ed Laurent had designed a new type single-tube driver circuit for a power amplifier before joining Dynco, and Hafler was intent on marketing this as an affordable choice for a large number of enthusiasts. Because of the high quality of Dynaco’s tube audio designs, the name quickly became synonymous with great sound at affordable prices. During the 1950s and 60s, setting up an audio system was still considered mostly an engineering hobby with the best sounding gear being built by its owners. Dynaco’s first product was the Mk. II, a 50 watts tube power amplifier. The unit was available both as a DIY kit and as a pre-assembled unit. After 2 years of successful sales, the Mk. II was succeeded by the Mk. III which was slightly stronger and offered 60 watts of power. These ‘Dynakit’ amplifiers were assembled by hundreds of thousands of audio enthusiasts at their homes. During the 1990s, the famous Dynaco Mk. II was featured in the Smithsonian's Museum of American History in Washington as a groundbreaking piece of American communications history.

Several Dynaco products of this time are still regarded as among the best audio designs ever made. This certainly includes the Dynaco ST-70, a 35 watts per channel stereo tube amplifier with a highly efficient push-pull output circuit. In fact, the ST-70 was designed so well that it was to become the prototype for many similar products that followed from other manufacturers. More than 350,000 ST-70 amplifiers had been sold by the time production finally ceased, making the ST-70 the most popular tube power amplifier in history. Although Hafler sold Dynaco to Tyco in 1968, he remained in an advisory position until 1971. By the time that David Hafler founded the company bearing his own name in 1972, he had already exercised an enormous influence on several generations of audiophiles and music lovers. With his mission of manufacturing high quality audio products at affordable prices being unchanged, the Hafler Company's first two designs were the affordable DH-101 preamplifier, followed by the DH-200 companion power amplifier, both offering exceptional music reproduction in that price range. Another notable product was the DH-500 stereo amplifier which was rated at 255 watts per channel and found great success in home, studio, and live environments. All units were available as DIY kits and as fully assembled products.

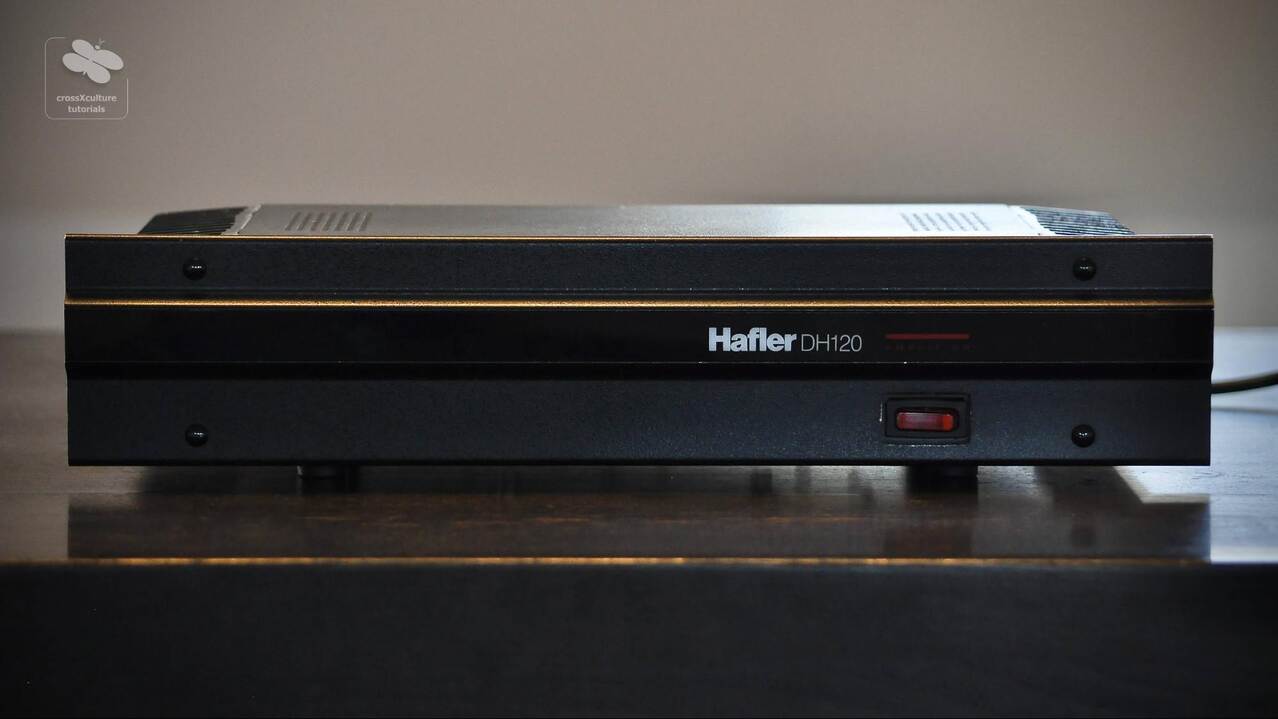

The Hafler DH 120 is a bridgeable 60 watts per channel transistor amplifier. It is of sturdy build quality with two amplifier boards hooked up to a single transformer. The 4 Hitachi MOSFET transistors per channel are mounted on two large heat sinks that constitute the sides of the amplifier. The specifications of the amp still read excellent by today’s standards, and the high quality of components assures a long life expectancy. Due to the relatively small number of parts and the well thought out circuit design, the DH 120 is a dynamic and musical piece of equipment showing that sought after Dynaco signature. In direct listening comparison, I even preferred the smoother and more colourful sound of the DH 120 to Hafler’s larger DH 220, a 110 watts per channel amplifier. Size is not everything, certainly not when it comes to the DH 120. The amplifier has got charme and is able to power most types of speakers just fine. For electrostatic and magnetostatic setups, the amplifier’s 60 watts per channel rating is most likely not enough.

Specifications

  • Power output (RMS, 8 ohms): 2 x 60 watts
  • Transistor Type: Hitachi Mosfet
  • Frequency response (60 watts, +/-0.5 dB): 10 - 40,000 Hz
  • Frequency response (1 watt, -3 dB): 4 - 200,000 Hz
  • Signal to noise ratio: >100 dB
  • Damping factor: 100:1
  • Crosstalk: 85 dB
  • Rise time: 2 uS
  • Weight: 9 Kg
  • Year: 1984 - 1990
